Purpose:

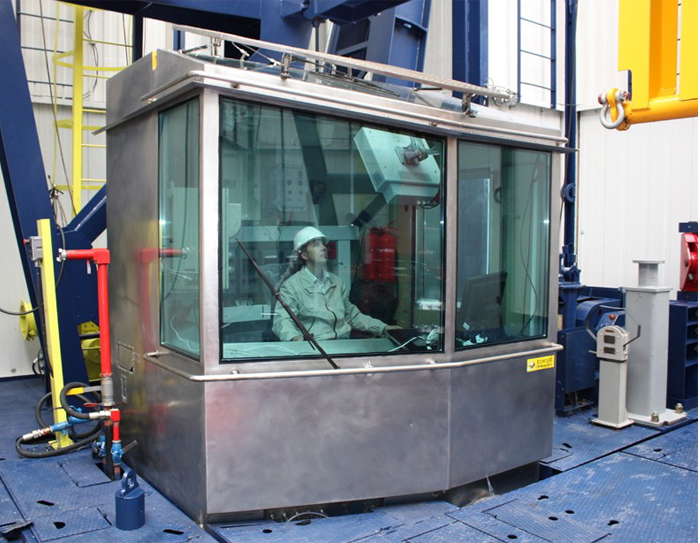

- Driller’s workstation;
- installation of control elements and instrumentation for operative remote control of the drilling rig mechanisms and units;
- operation in moderate climate areas (–45°С…+45°С) at the fields with hydrogen sulfide content less than 6%.
Design:
- module with quick-released connections at the lines input;
- frame made of steel pipes and profiles;
- heat and noise insulated doors, glasses and walls;
- windows with antimist system;
- brush type screen wipers with screen washers at the front and top windows;
- air conditioning system.
Cabin is equipped with:
- pneumatic Driller’s console;
- electric Driller’s console with an air-preparation unit;
- indication console of the drilling parameters control system;
- TDS control panel;
- video surveillance device;
- explosion-proof alarm station;
- compact pressure gauge (in the pneumatic Driller’s console);
- explosion-proof lighting panel;
- heater;
- conditioner with a control unit;
- operator’s arm-chair.
Operator’s arm-chair is equipped with:
- right and left consoles besides the armchair with all the main controls installed on them;
- drawworks command device is a joystick;
- control button;
- switch.
